Products : Technical Specification
SHEET Materials
Thick Range : 0.3 to 1.00 mm
Steel : Color Coated / Bare Galvalume, Color Coated GI
Alloy Coating : Galvalume – 50 /100/150 GSM
Zinc – 120 GSM Yield Strength : 240 / 550 Mpa

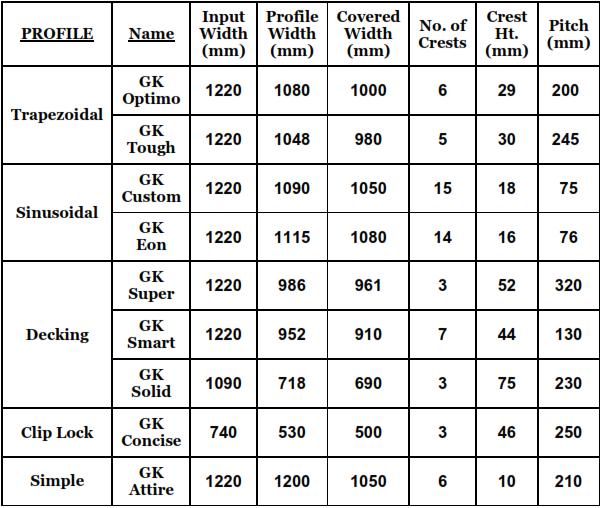

Profile Dimensions
SHEET FASTNERS
Wafer Head Self-Drilling /Tapping
Screws as per AS 3566 class 3 Category
Cold-roll ed “C” & “Z” - PURLINS
Thickness : 1.6 to 3.00 mm
Material : Normal / Zinc coated IS 2062 & >240 Mpa
Standard Web size 200 / 230 /250 mm
Flange size 70 / 80 mm with Lip 10 / 20 mm
Lighting Sheets
Polycarbonate / FRP
Thickness : 1.6 / 2.0 mm
Finish : Plain / Emboss
Width : 1 Meter
Turbo – Ventilators
Imported / Indigenous
Throat Dia : 500 / 600mm
Raw Materials & Specifications
Steel :Hi-Tensile Steel: (> 345 Mpa)-SAILMA, IS 2062, IS 1079
Sheet - Galvalume/Galvanized Mtrl (GI).
ASTM A792 Gr.550 - 550 Mpa, AS 1397 : 1993
Color Coating : AS/NZS 2728 :1997
